​ Macronix's technology portfolios, as shown in the attached graph and table, including High-Voltage, Bipolar-CMOS-DMOS, Ultra-High Voltage, Mixed-Mode, and Embedded NVM platforms. These platforms are suitable for the applications including MCU, Speech IC, Display Driver IC, Power Management IC, Motor Driver IC, LED Driver IC, etc.. We also welcome partners through co-developing of technologies to fit best needs.

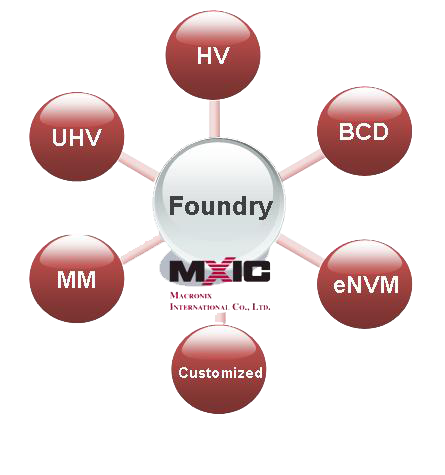

Scope of Macronix Foundry Technology

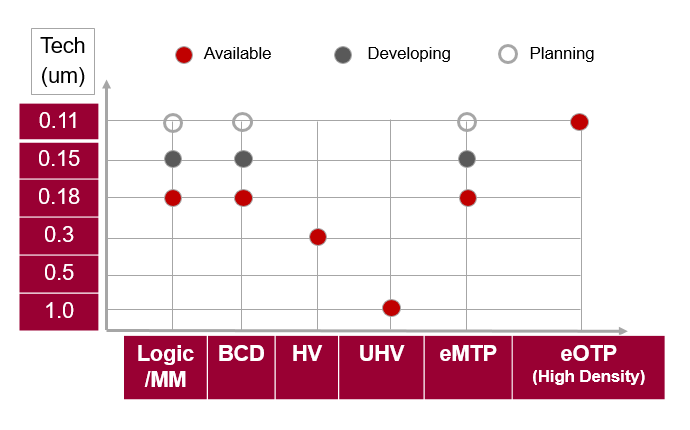

Available Technology

Application Technologies Features LV MOS (V) HV MOS
|Vgs| (V) |Vds| (V)
Analog , Driver , PMIC 0.5um 3.3V/10V HV CMOS 1P2M 3.3 10 10
0.35um 3V/12V HV CMOS 1P3M 3.3 12 12
0.35um 3V/5V/12V HV CMOS 2P3M 3.3 , 5 5 12
0.5um 3.3V/12V HV CMOS 1P2M 3.3 12 12
0.5um 3.3V/16V HV CMOS 1P2M 3.3 16 16
0.5um 5V/12V HV CMOS 2P3M 5 5 12
12 12
0.5um 5V/16V HV CMOS 2P3M 5 5 16
16 16
0.5um 5V/18V HV CMOS 2P3M 5 18 18
0.5um 5V/12V (Triple-Well) HV CMOS 2P3M 5 12 12
0.3um 5V/18V/24V (Triple-Well) ( 8 '') HV CDMOS 2P3M 5 5 18 , 24
18 18
24 24
0.5um 5V/18V/24V (Triple-Well) HV CDMOS 2P3M 5 5 18 , 24
18 18
24 18
0.5um 5V/40V (Triple-Well) HV CDMOS 2P3M 5 40 40
0.8um 5V/40V (Triple-Well) ( 8 '') HV CDMOS 2P3M 5 5 25
32 32
40 40
1.0um 5V/40V (Epi) HV CDMOS 1P2M 5 40 40
0.5um 5V/18V (Epi) HV BCD 2P3M 5 5 15 , 18
15 15
18 18
0.5um 5V/20V/40V/65V (Epi) HV BCD 2P3M 5 5 20 , 36 , 40 , 65
40 40
0.5um 5V/65V/85V (Epi) HV BCD 2P3M 5 5 65 , 85
ACDC , LED Driver 1.0um 5V/40V/700V (Triple well) UHV CDMOS 2P2M 5 40 40
5 700
1.0um 5V/7.5V/40V/150V~500V (Triple well) UHV CDMOS 2P2M 5 , 7.5 40 40
15 150 , 250 , 500
1.0um 5V/7.5V/20V/150V~700V (Triple well) UHV CDMOS 2P2M 5 , 7.5 20 20
20 150 , 250 , 400 , 500 , 700
DCAC , Motor Driver ACDC(LLC) 3.0um 15V/650V (Epi) UHV CDMOS 1P2M 15 500 , 650
0.6um 5V/20V/700V (Epi) UHV CDMOS 1P2M 5 20 20
20 700
Logic ASIC 0.6um 5V Logic 1P2M 5
0.5um 3.3/5V Logic 1P3M 3.3 , 5
0.35um 3.3V Logic 1P3M 3.3
0.35um 3/5V Logic 1P3M 3.3 , 5
Analog , Driver , PMIC , LDO 0.6um 7V(Max) LV Mixed - Signal 2P2M 7
0.6um 5V LV Mixed - Signal 2P2M 5
0.5um 5V LV Mixed - Signal 2P3M 5
0.5um 1.5V LV Mixed - Signal 2P3M 1.5
0.35um 3.3/5V LV Mixed - Signal 2P3M 3.3 , 5
μ Controller , ASIC 0.5um 5V Embedded OTP 3P3M 5
0.5um 5V Embedded ROM 1P3M 5
0.5um 3.3V Embedded ROM 1P3M 3.3
0.5um 1.5V Embedded ROM 1P3M 1.5
0.45um 5V Embedded ROM 2P3M 5
0.45um 1.5V Embedded ROM 2P3M 1.5
0.35um 3.3V/5V Embedded ROM 1P3M 3.3 , 5
0.35um 3.3V/12V Embedded ROM 1P3M 3.3 12 12

​​​
